SERIES 3 ALUMINIUM ROLLER SHUTTERS
Overview
Crafted from high quality extruded aluminum, the Series 3 Roller Shutters provide exceptional security while enhancing the visual appeal of your establishment. Designed for versatility, these shutters can be tailored to suit a wide range of aperture sizes and are available in various designs to meet your specific requirements.
The shutters come equipped with a motorized locking mechanism for ease of use. For added security, an optional two point locking system can also be installed, which can be keyed from either the inside or outside.
Available in two premium finishes powdercoated and anodized you can choose the one that best complements the interior or exterior of your space. For improved airflow, we offer perforated panel options, while clear acrylic panels can be added to help protect against dust without compromising visibility.
Applications
Suitable for many commercial applications including:
Shopping Centres, Bar, Tops, Counter Tops, Shopfronts, Doorways, Sports Complexes, Arcades, Clubs, Gyms, Restaurants
Size
Available up to 10,000mm (width) x 6,000mm (height). Custom
sizing available upon request.
Specifications
Curtain:
Series 3 is constructed from extruded aluminium slats with a face depth of 90mm x 1.6mm. Nylon end clips are fitted to prevent lateral movement & supply smooth operation.

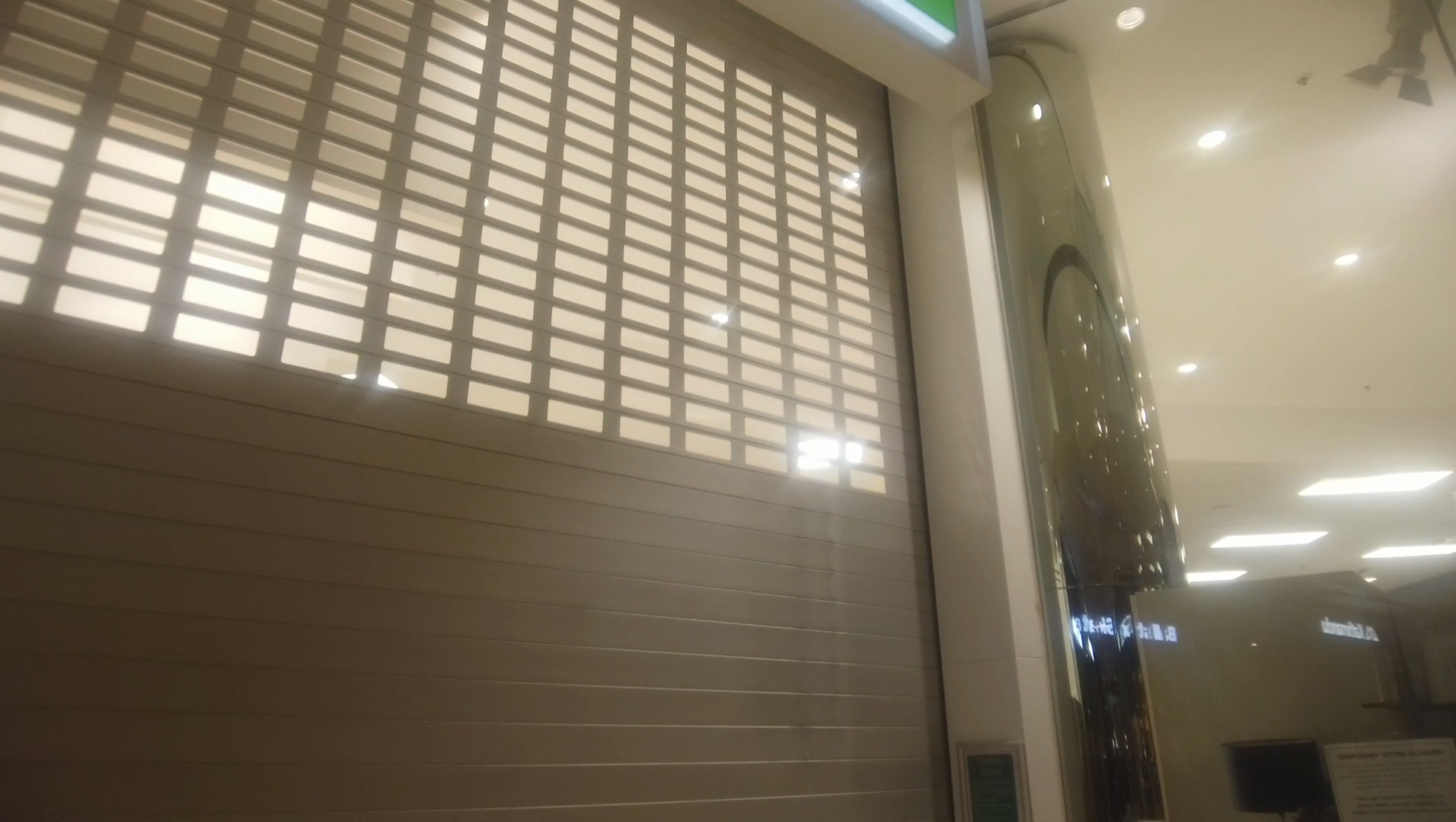

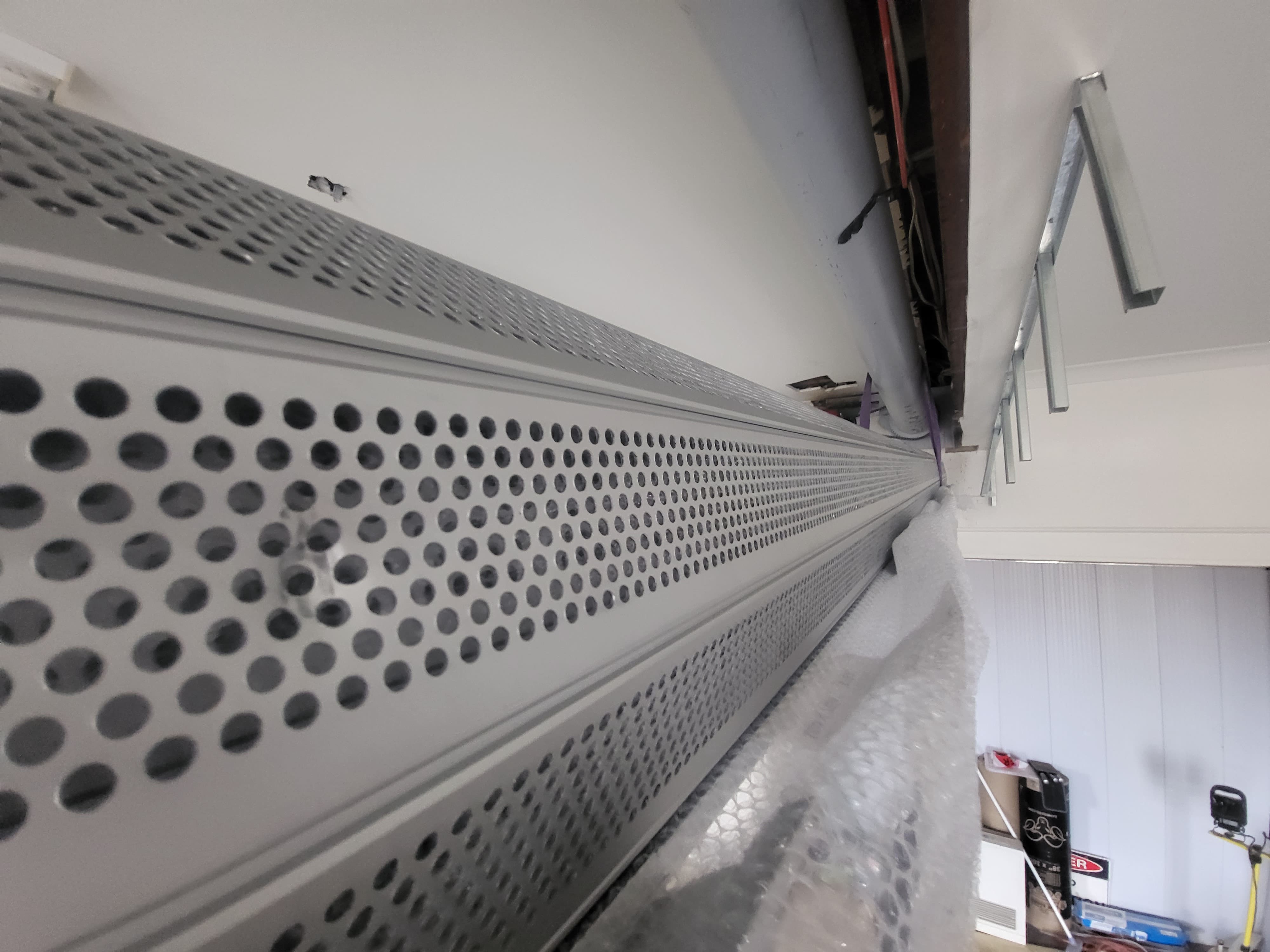

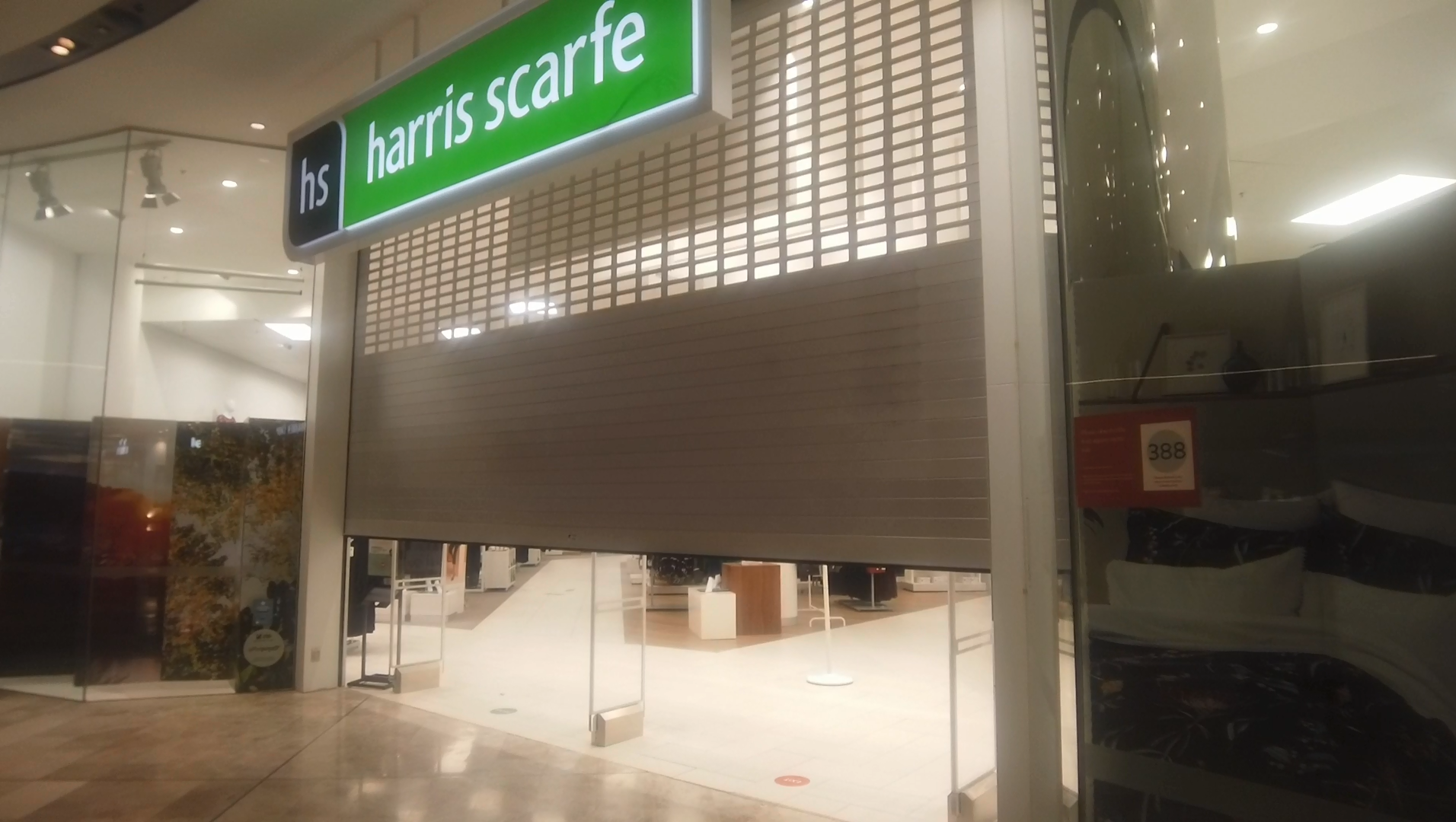

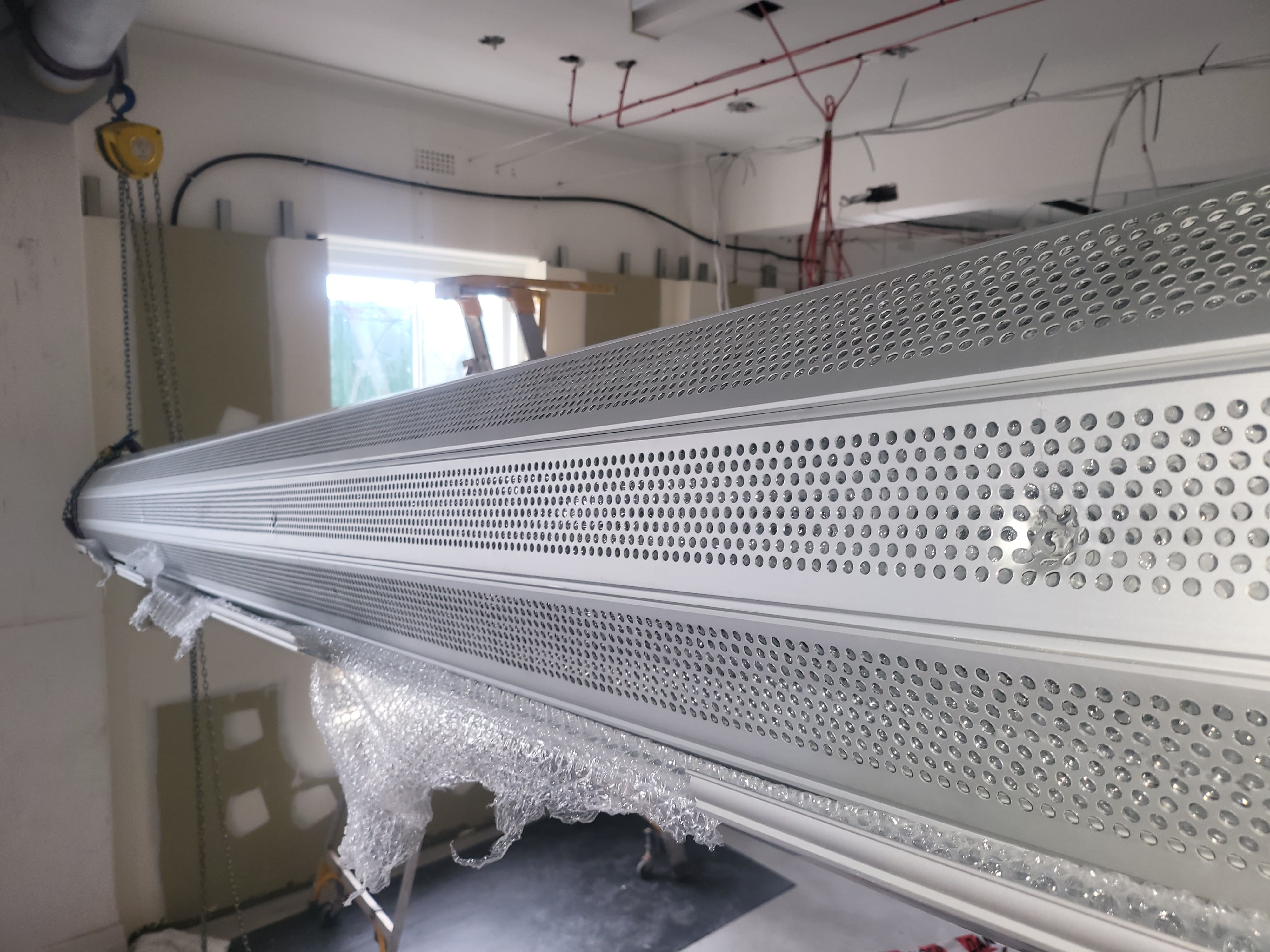

Optional perforations of 6mm holes at 9mm centres or slotting of 160mm x 60mm are available. Clear acrylic panels can be fitted for a dust seal. Perforated shutters offer 32% free air flow of the ventilated area. Slotted versions offer 53% free air flow of the ventilated area.
Operation:
24V Belt-Driven System
Motorised systems utilise low-voltage 24V belt-driven technology to deliver smooth, quiet operation. The 24V system may be configured with a single motor or dual motors, allowing the door to remain evenly balanced across the opening.
240V Chain-Driven System:
Motorised operation utilising a 240V chain-driven system, designed for larger and heavier door applications, including wide-span openings.
3-Phase Motor Option:
For large-scale applications, including doors exceeding 20 metres in width, a 3-phase motor configuration is available.
Slide Guide:
103mm x 41mm extruded aluminium with schlegel nylofelt buffer for quiet operation.
Locking:
Doors are generally motorised, but can be fitted with standard two point locking.
Brackets:
10mm mild steel.
Roller drum:

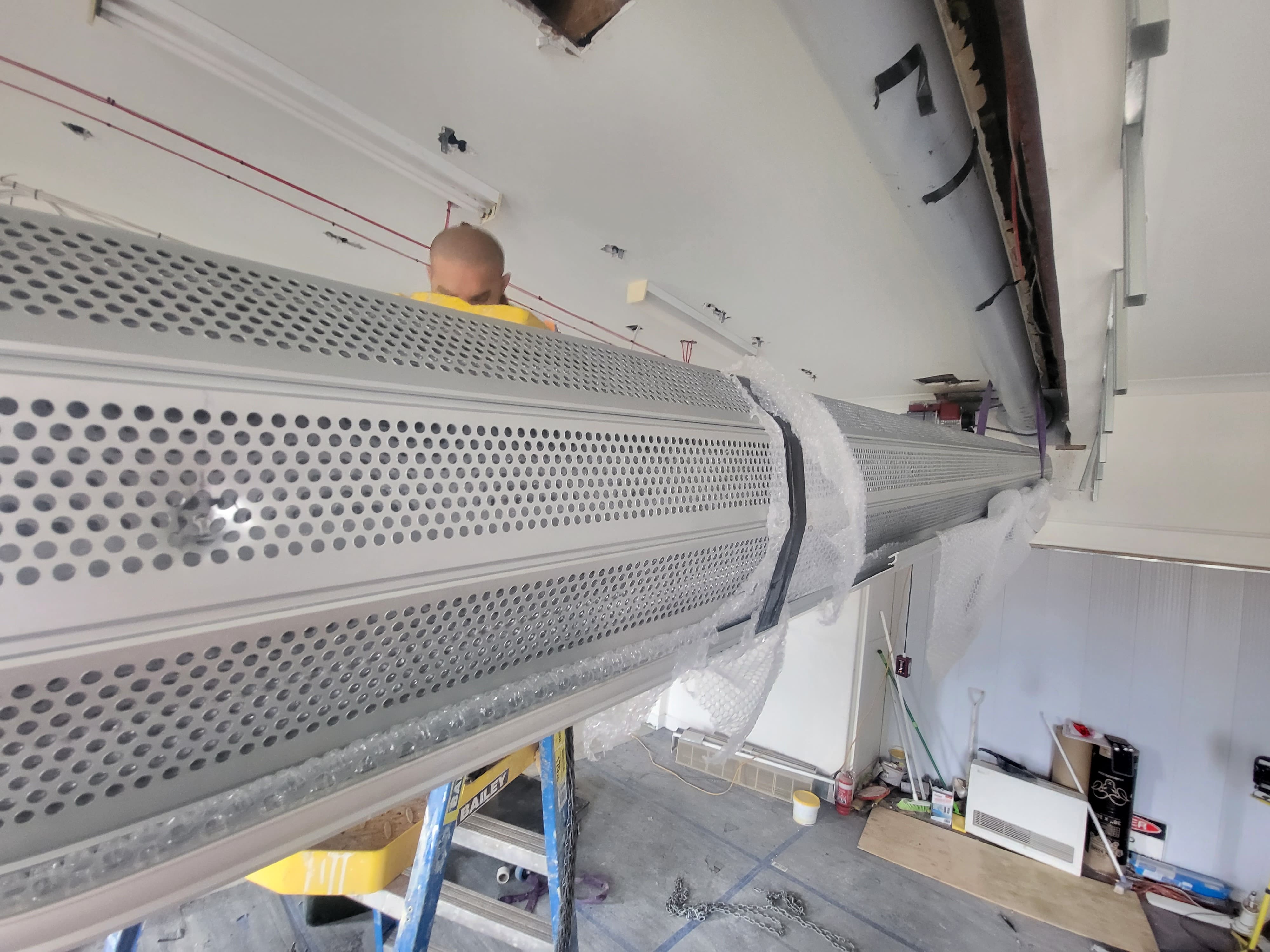

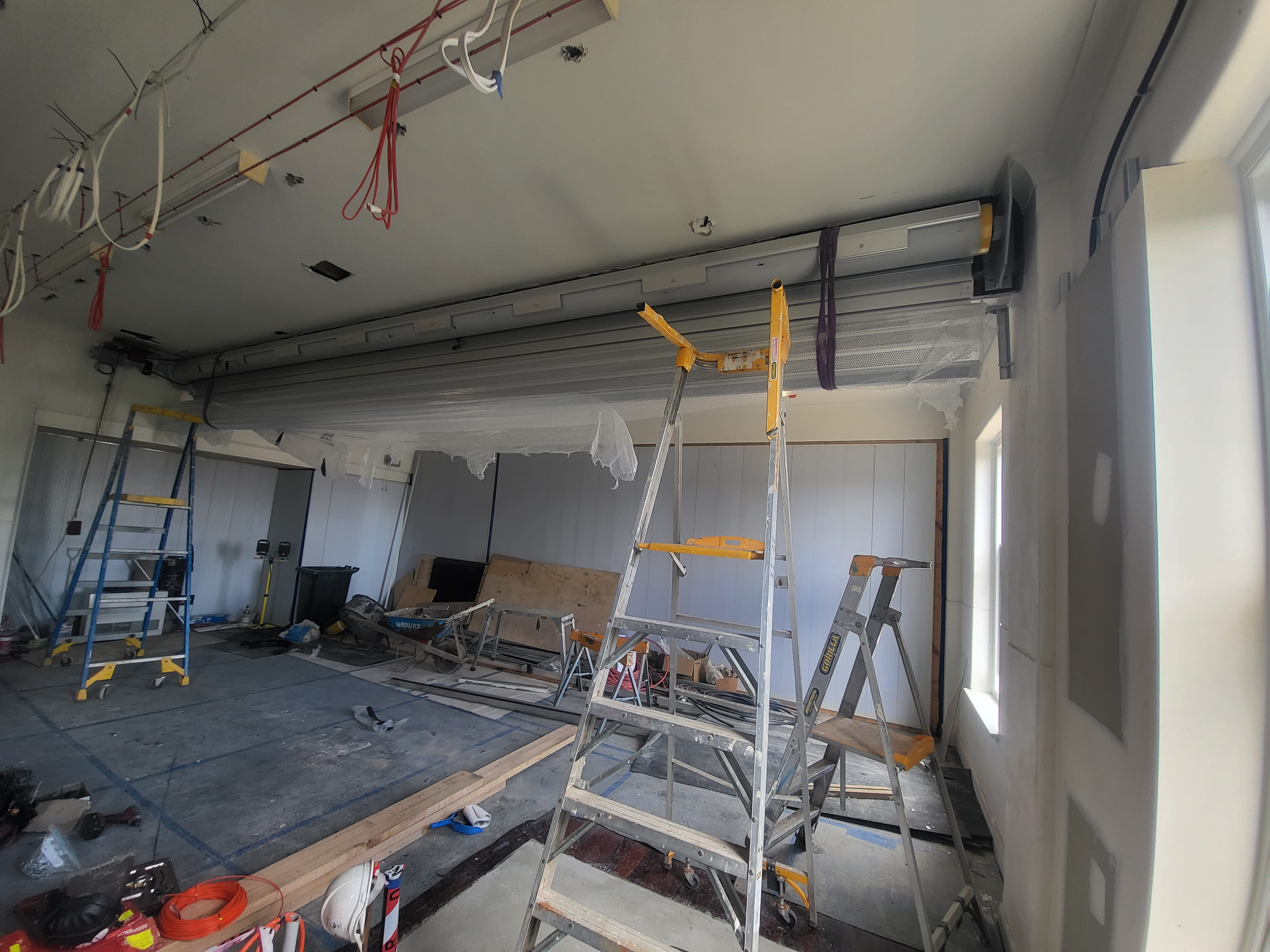

165mm or 219mm seamless tube attached to self lubricating bearings rotating on a 35mm steel shaft. The shaft shall be fitted with helical springs designed to counterbalance the curtain weight throughout its operation. The drum shall be designed to give minimum deflection over the span.
Bottom rail:
Extruded aluminium tee section specially manufactured to 1000 interlock with curtain.
Mullions:
To suit individual or multiple openings.
