SERIES 1000 FLOATAWAY DOOR
Overview

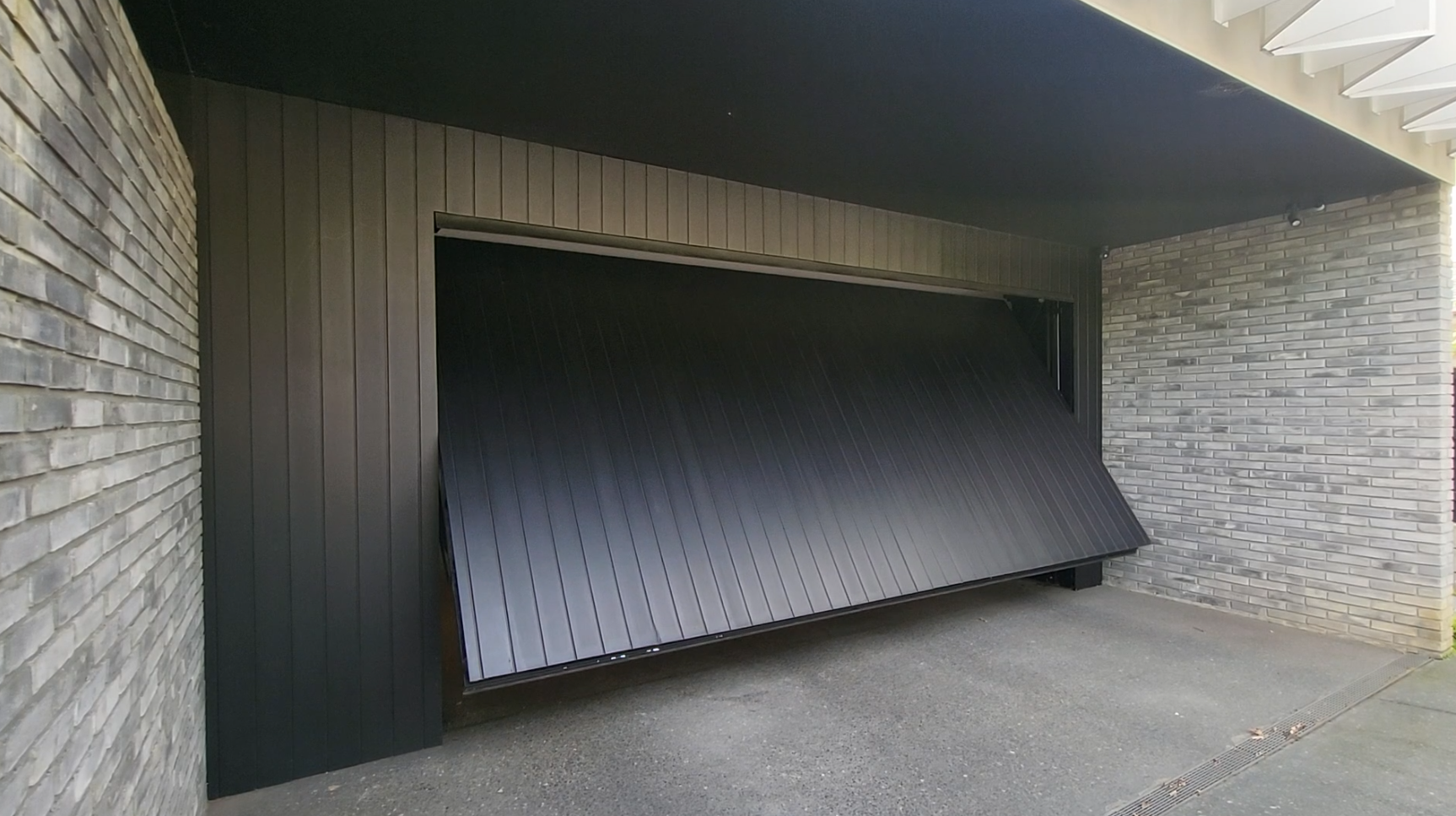

From industrial to residential applications, the FloatAway Series 1000 doors have you covered. Each door is individually engineered and manufactured using precise mathematical calculations to achieve exact counterweight balance ensuring both safety and aesthetic appeal.
The counterweight balanced design makes a bold architectural statement. It’s secure, easy to operate, and highly versatile, accommodating most types of cladding. Thanks to its structural and functional flexibility, the Series 1000 door can be used in a wide range of settings and is custom-tailored to meet the specific requirements of each building.
Whether open or closed, its superior design and strict quality control ensure long-lasting performance.
Applications

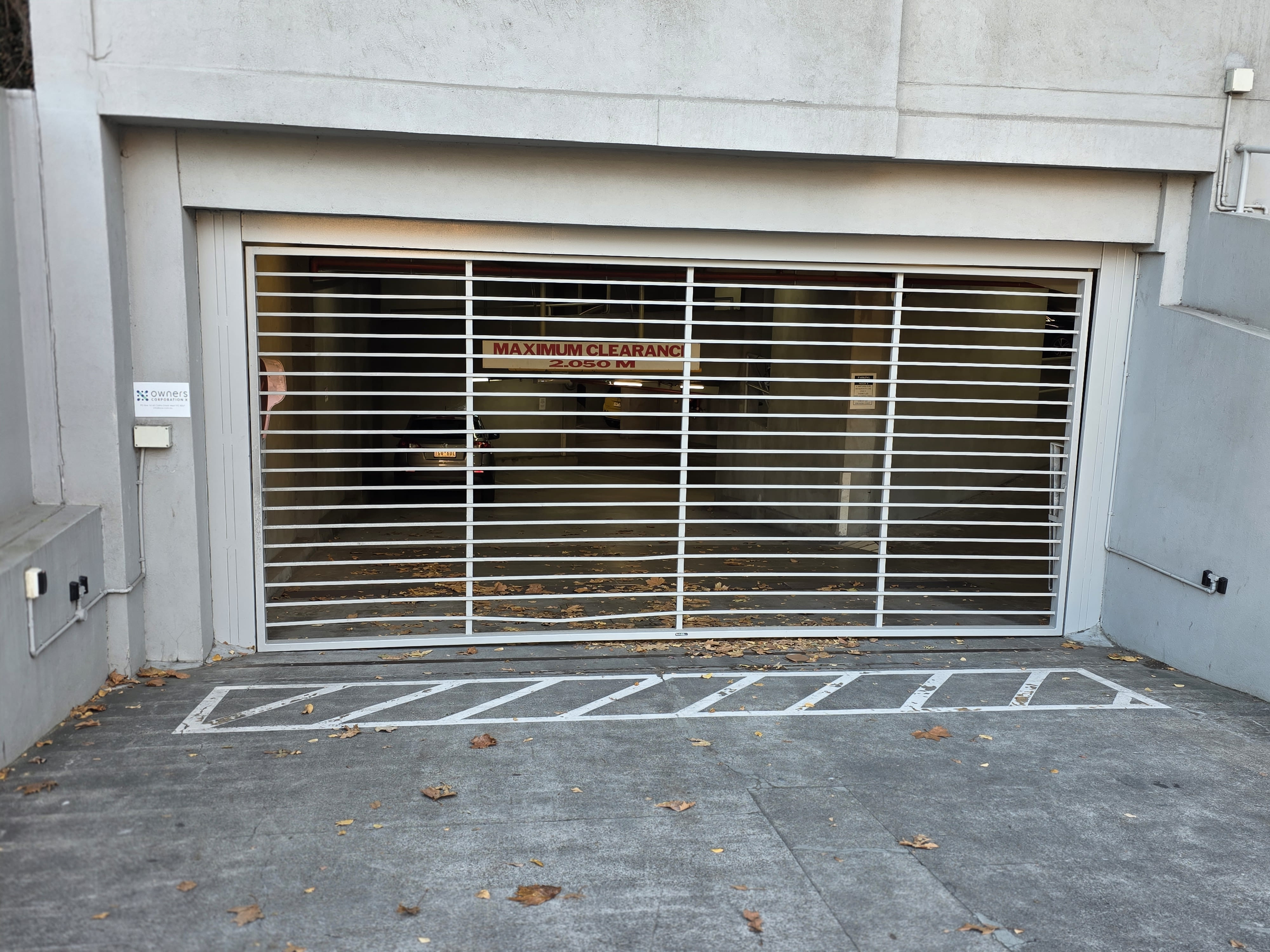

Suitable for many commercial applications including:schools,swimming pools, carpark entries, commercial light industrial applications
Size
Standard maximum size: 10,000 mm (width) x 6,000 mm (height)
Custom sizes may be available upon request.
Specifications
Operation:

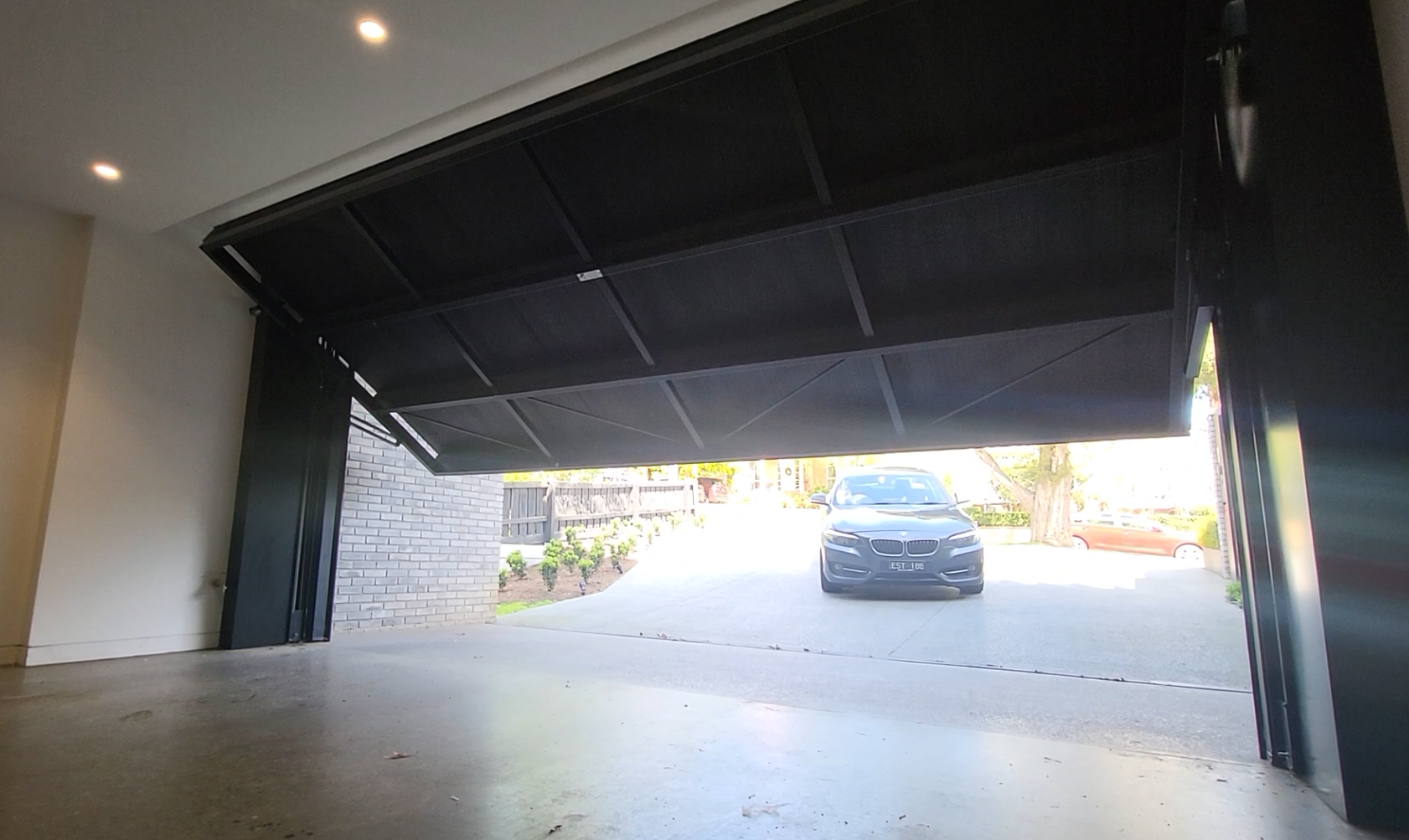

The Floataway Door is a single leaf door balanced with counterweights under constant suspension. Door movement is controlled by guide bearings running in vertical 60 x 70 x 60 x 3m guide channels and flat mild steel link arms connecting the door to the side guides.
24V Belt-Driven System
Motorised systems utilise low-voltage 24V belt-driven technology to deliver smooth, quiet operation. The 24V system may be configured with a single motor or dual motors, allowing the door to remain evenly balanced across the opening.
240V Chain-Driven System:
Motorised operation utilising a 240V chain-driven system, designed for larger and heavier door applications, including wide-span openings.
3-Phase Motor Option:
For large-scale applications, including doors exceeding 20 metres in width, a 3-phase motor configuration is available.
Safety:
Our patented anti-fall brake mechanism is optional and designed for the event of a cable failure.
Counterweight Balanced Door:
The frame is constructed from hollow steel sections and designed, in accordance with AS1170, AS1250, to withstand a wind loading of 0.5 kPa in the closed position and provide minimum deflection in the open position.

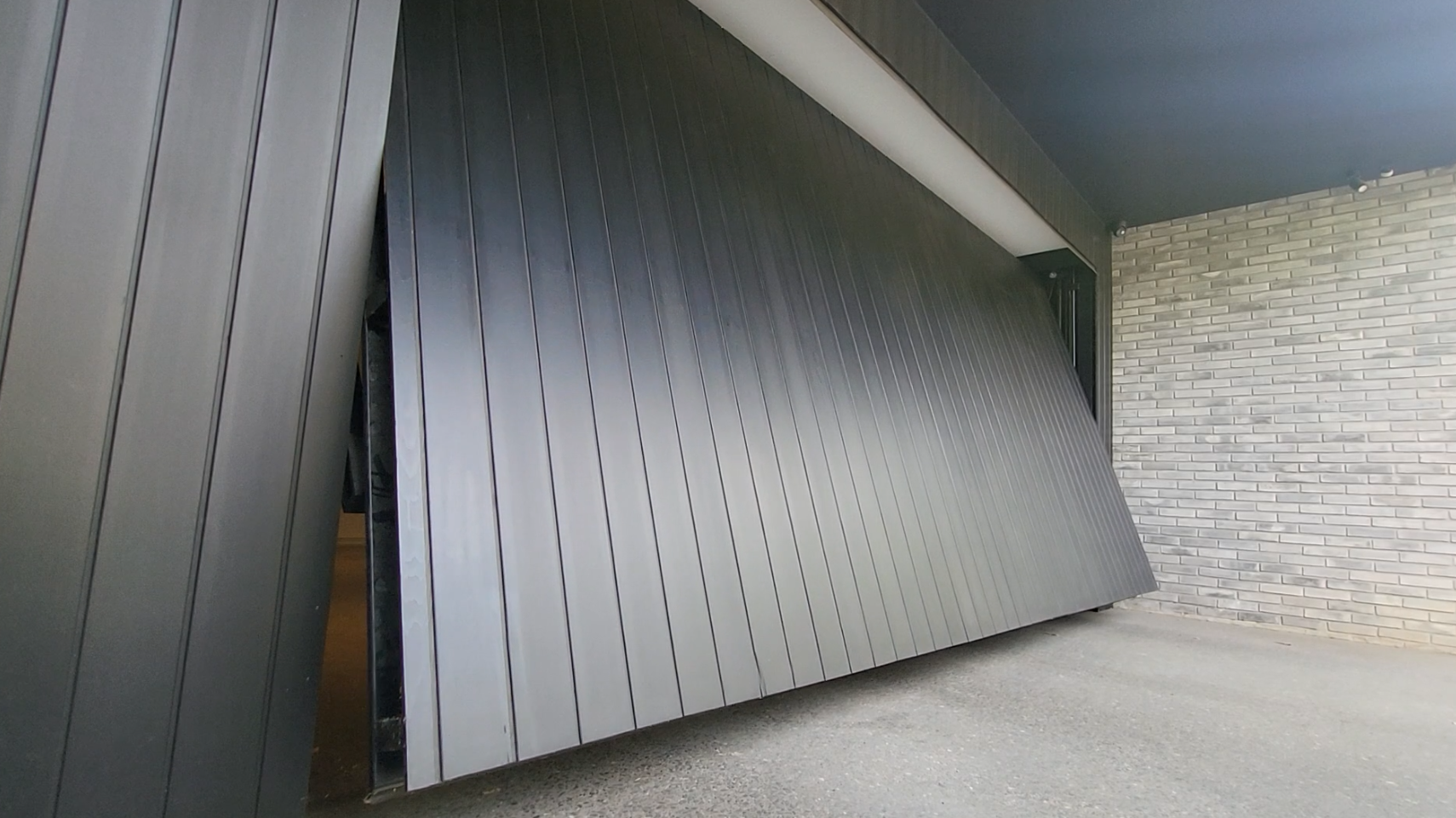

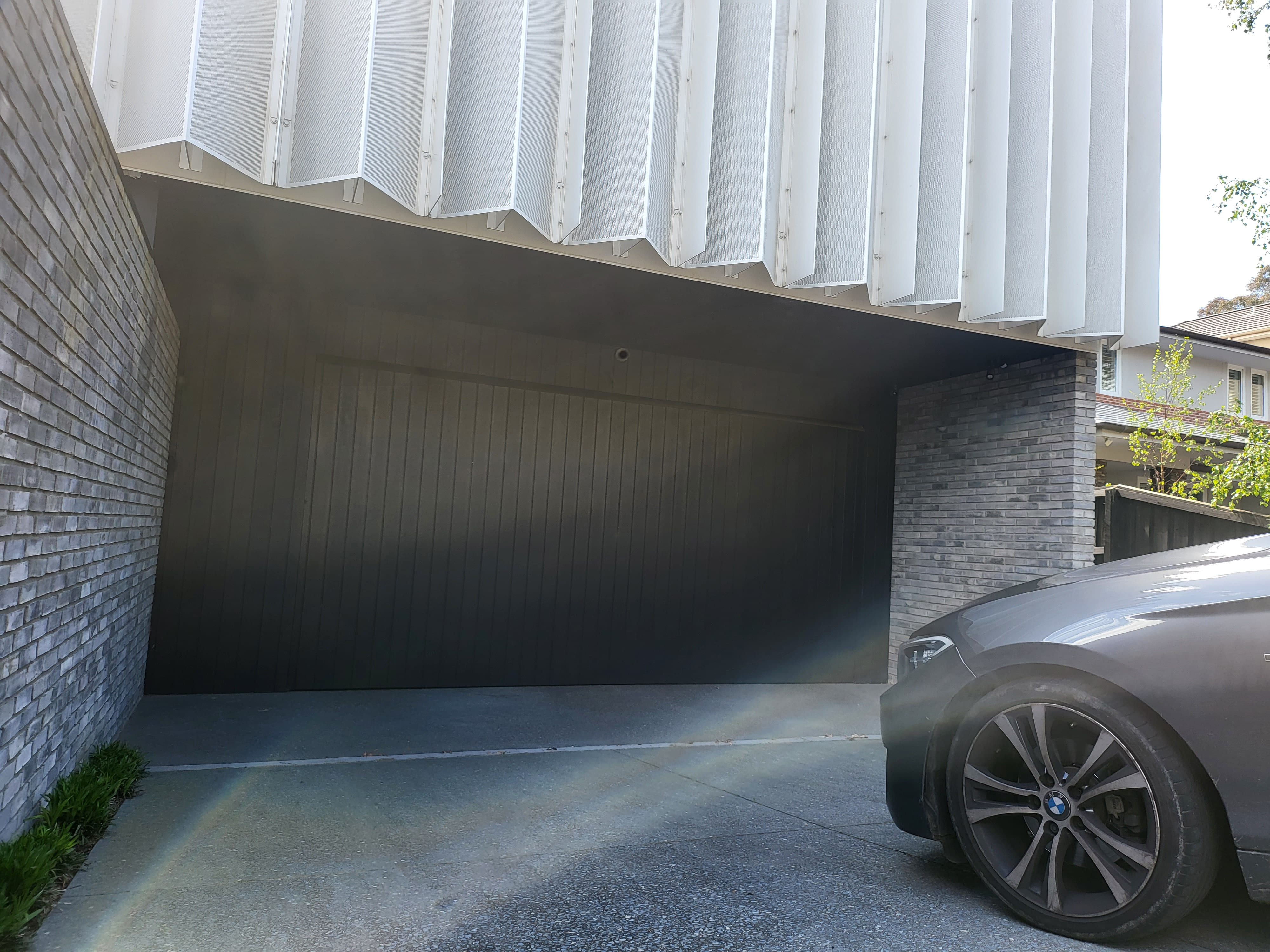

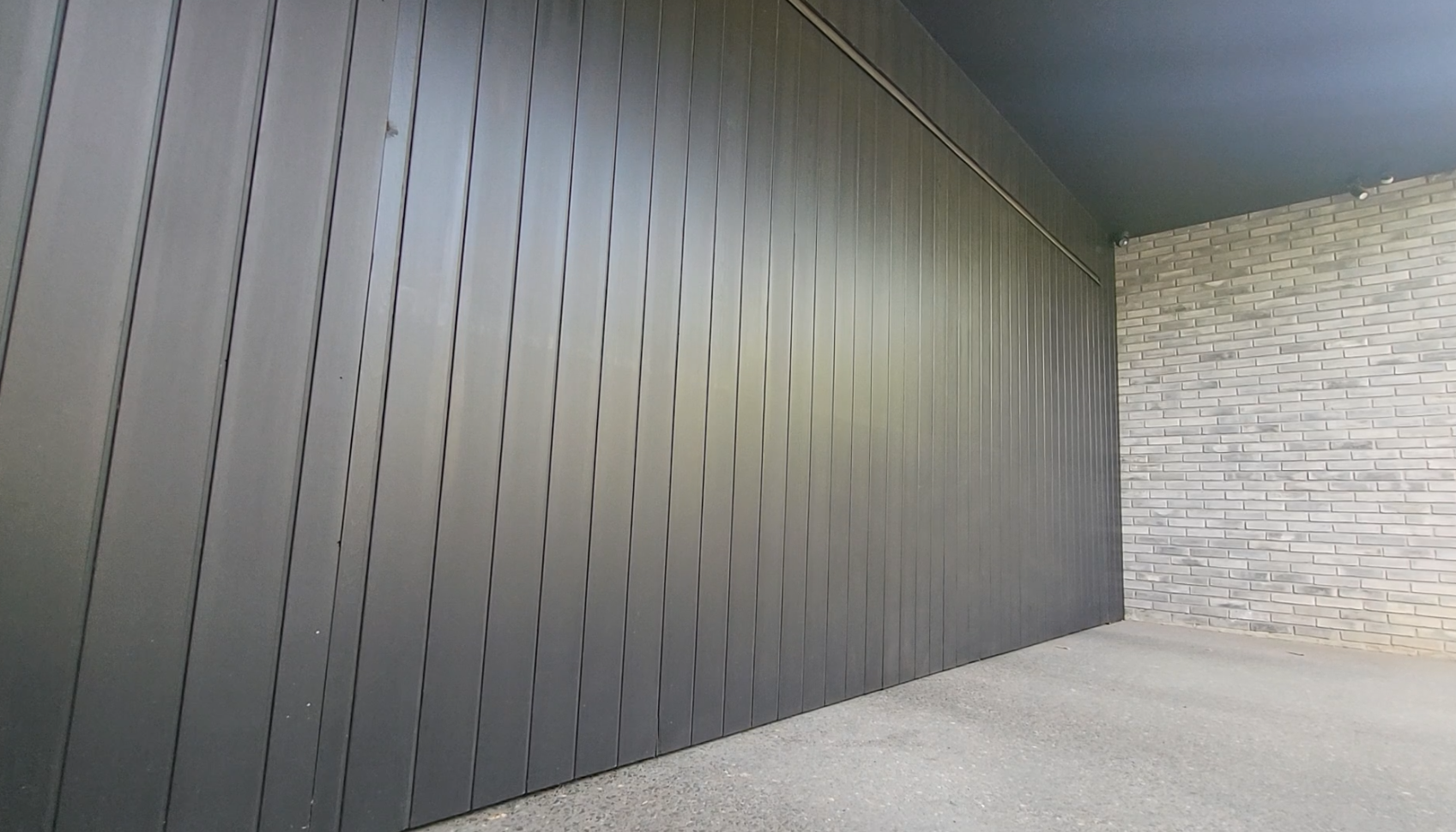

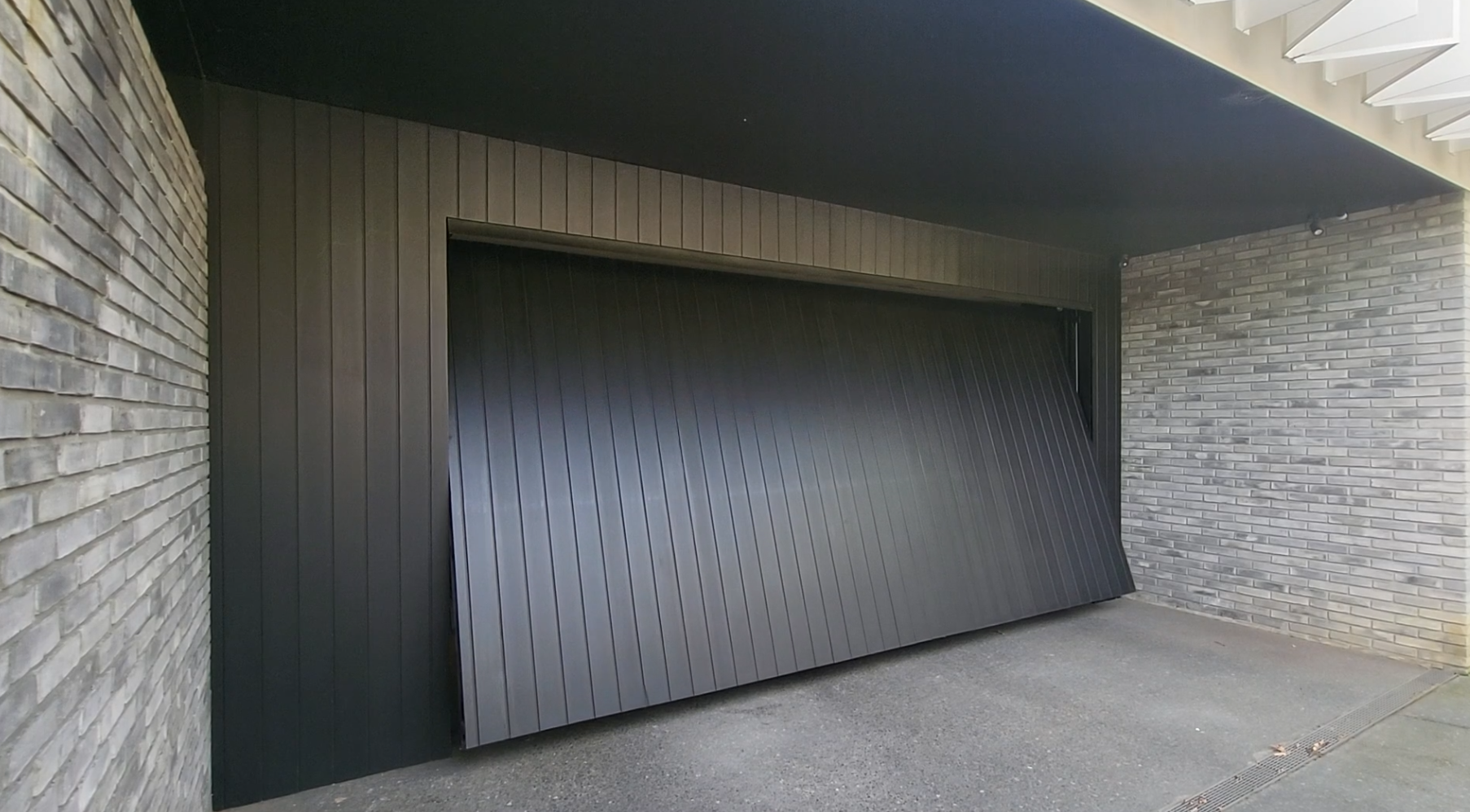

Cladding (Steel):
Doors can be clad with various sheeting materials. Standard Colourbond profiles are commonly used. However, specialised profiles can be used. Please consult the manufacturer on the use of non-standard sections.

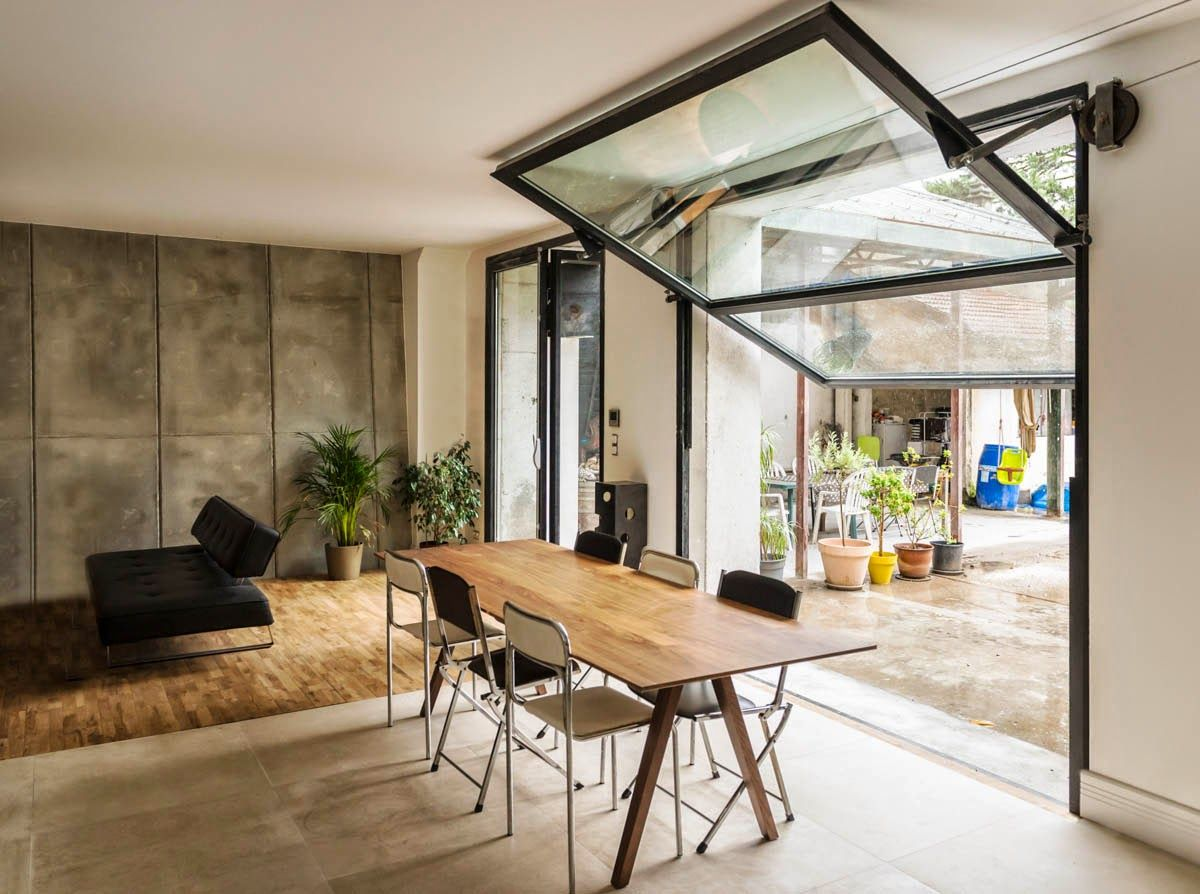

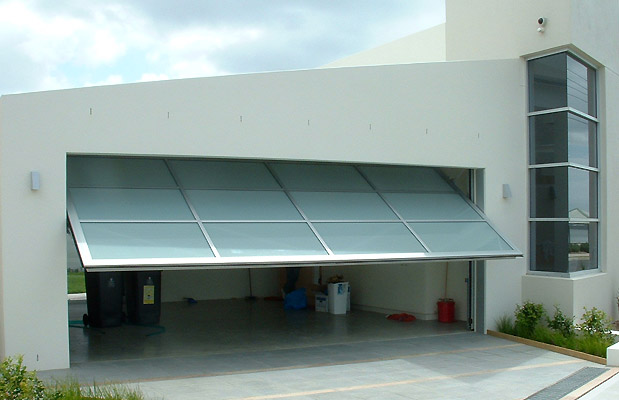

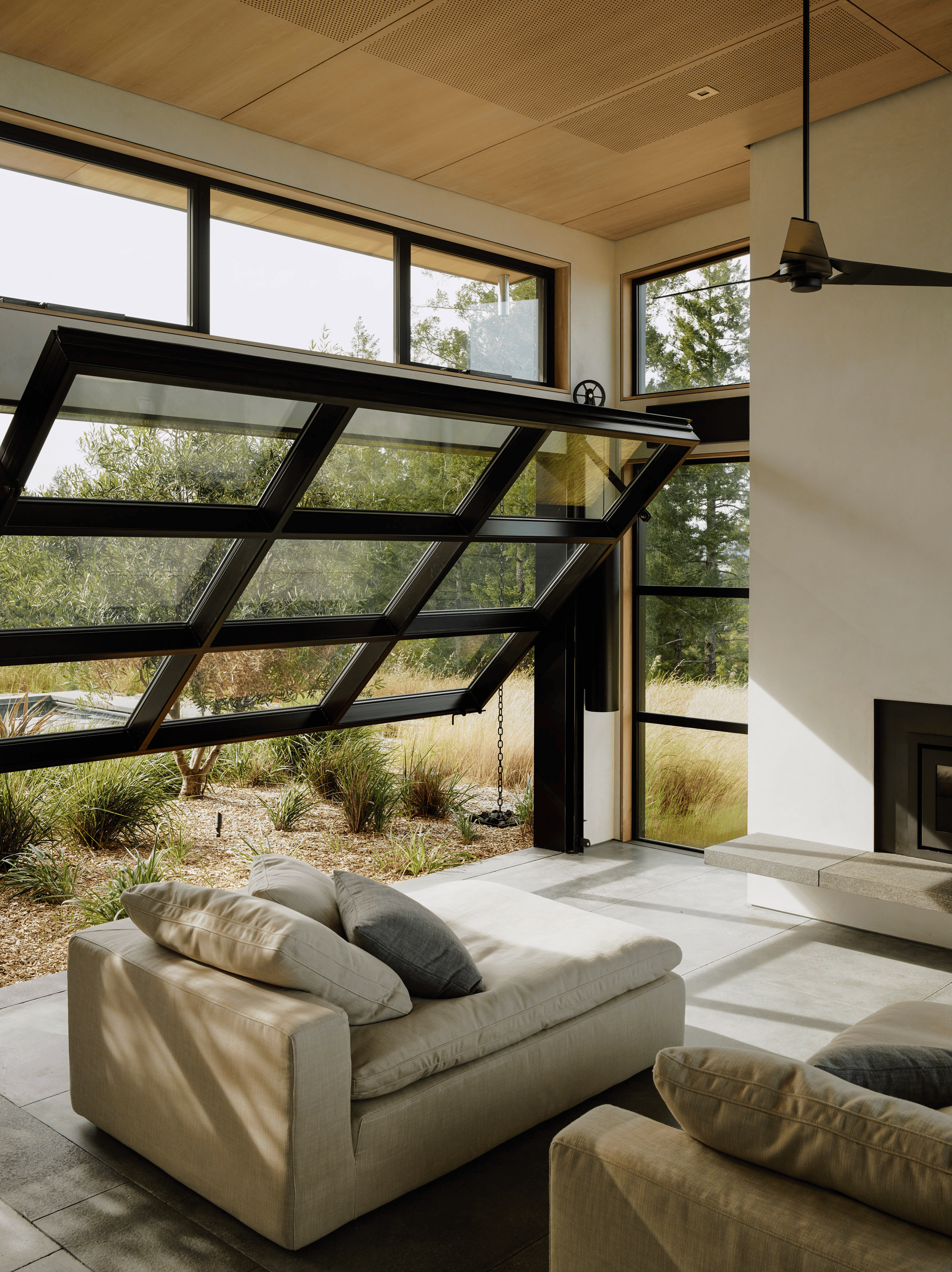

Cladding (Glass):
Doors can be partially or fully glazed for viewing or showroom display and are in accordance with AS1288. Standard glazing uses 6.38mm laminated safety glass. The use of other glass or glazing material should be referred to the manufacturer due to additional weight, deflection, door design and construction. Glazed doors will generally incorporate a kickplate in the base of the bottom leaf. Door size and weight will determine kickplate height.

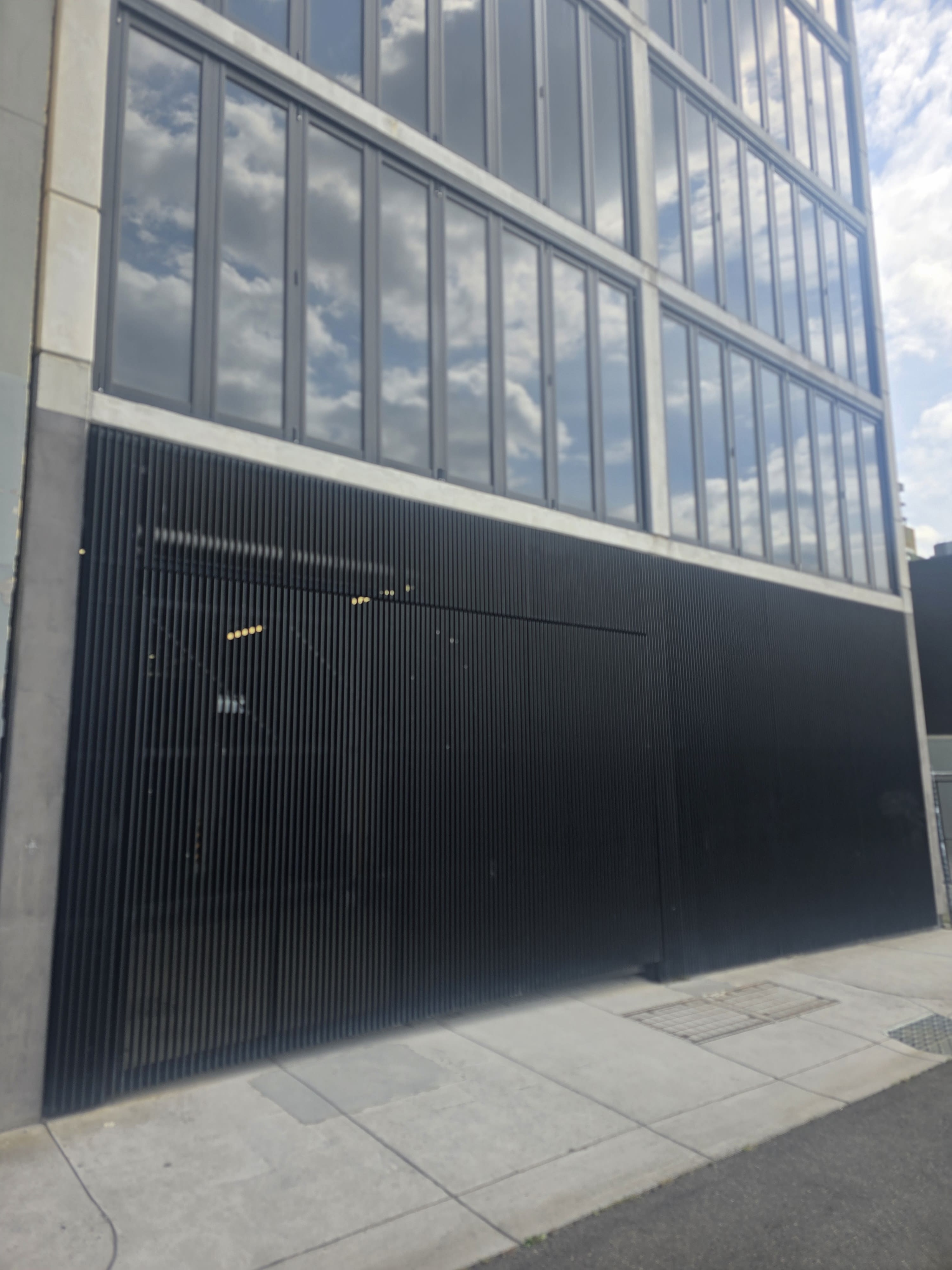

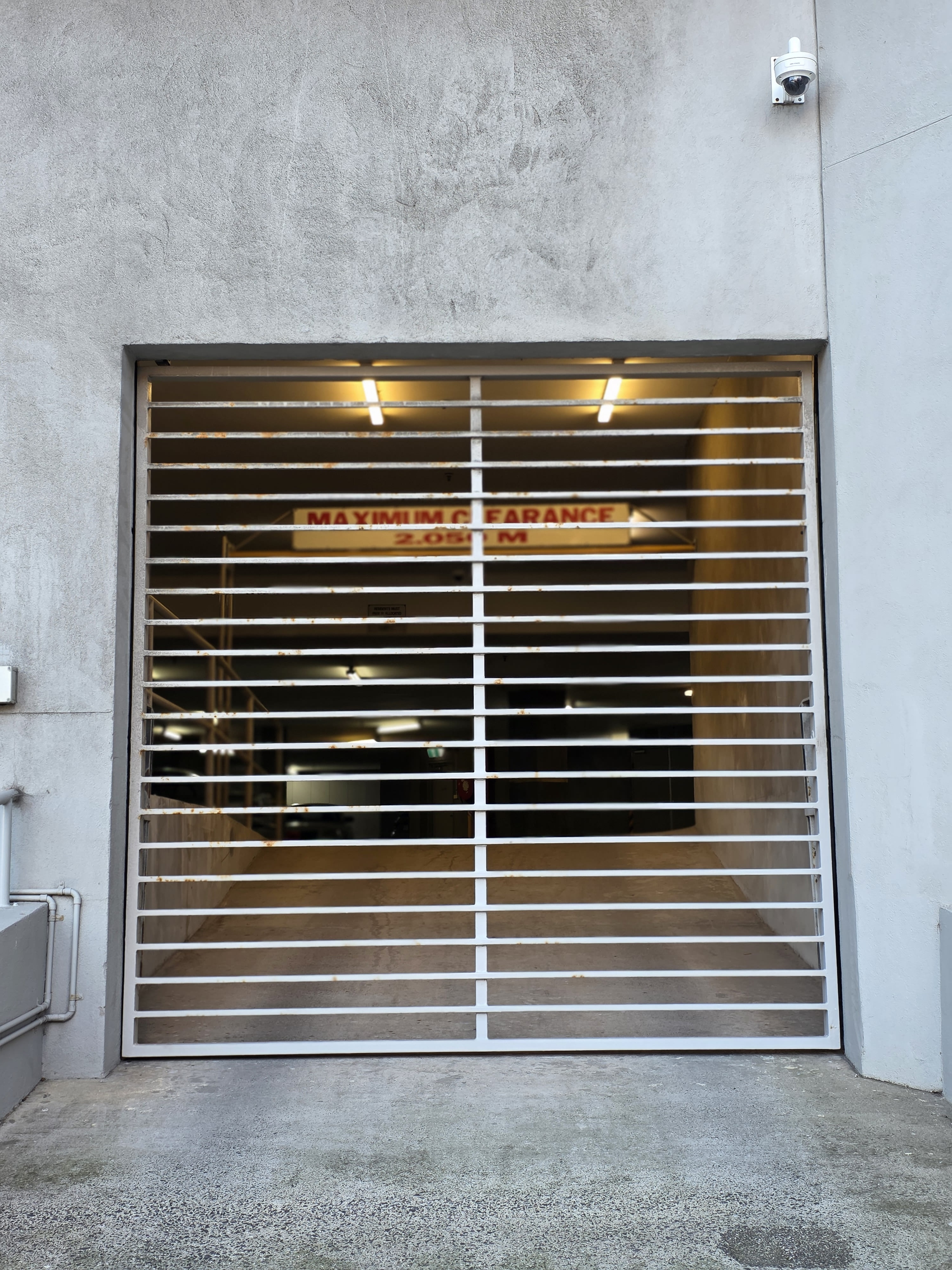

Bar Grille:
This door is constructed of standard RHS frame covered with 20mm square hollow steel tube welded vertically over the entire door face at approximately 120mm centres.

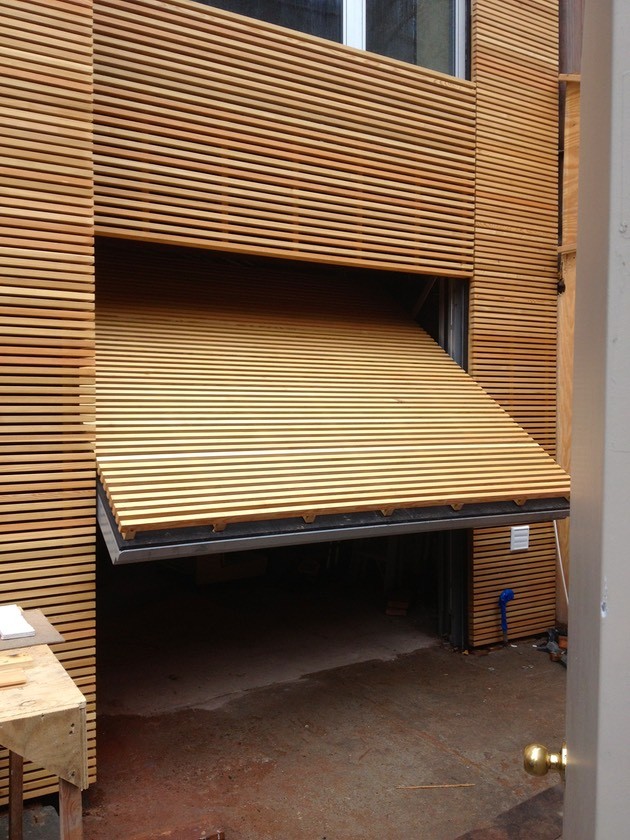

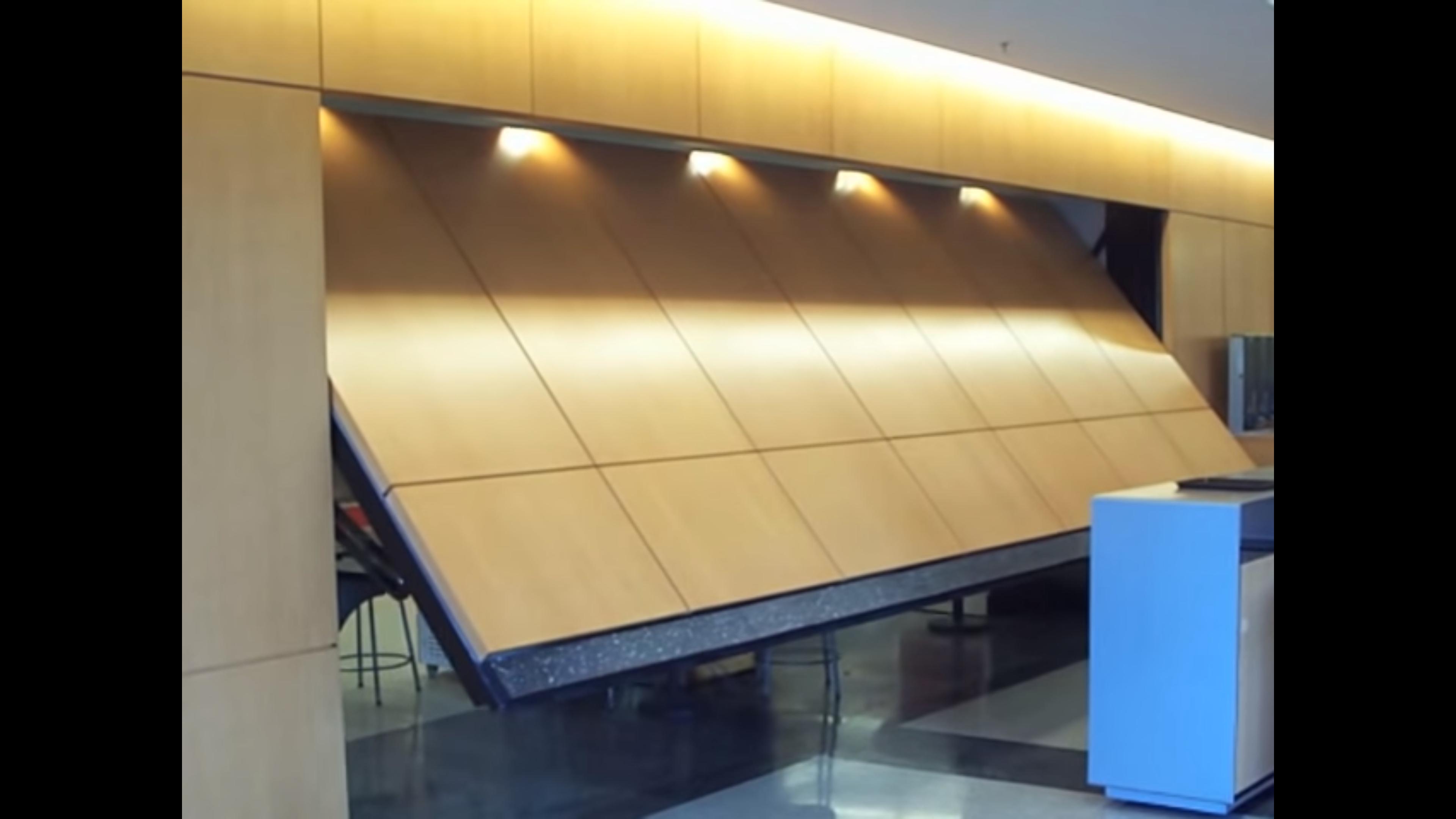

Other Cladding:
Other available claddings commonly used are plywood, mesh, perforated sheet, woven wire and galvanised sheet.
Locking:
By use of internal padbolts unless otherwise specified. Motorised doors will not be fitted with locks.
Counterweight Covers:
The counterweights shall be protected and covered with a removable pressed sheet to meet design requirement
Brochure
.png)
.png)
.png)
.png)
.png)
.png)
Why Titan Door Systems Stands Apart
At Titan, every project is more than a transaction, it’s a long-term partnership built on trust, transparency, and a shared vision for excellence. From your first enquiry to ongoing support, we offer a seamless and considered experience defined by clarity, precision, and an unwavering commitment to detail. Whether you're designing for function, form, or both, we guide you through every stage with care, confidence, and craftsmanship.
1. Consultation and Quoting
It all begins with a conversation. We listen closely, offer expert advice, and provide clear, tailored quoting to ensure your goals are understood and aligned from the outset.
2. Design and Engineering
Our design and engineering teams bring creative insight and technical precision to each project, delivering solutions that are as structurally sound as they are visually refined.
3. The Manufacturing Stage
Our fabrication process reflects a commitment to excellence, with every component crafted using trusted materials and exacting standards.
4. Installation and Tutorial
Our skilled installers ensure every system is fitted with care, followed by a detailed handover to empower your team with full understanding and ease of use.
5. Ongoing Support and Maintenance
Our commitment doesn't end at installation. We provide continued support and maintenance to ensure optimal performance, long-term reliability, and lasting peace of mind.
The Voices Behind Our Reputation
Don’t just take our word for it, hear from those who’ve experienced the difference. From homeowners to respected industry leaders, we take pride in delivering quality, reliability, and craftsmanship that consistently surpasses expectations.
When our glass swing door at our office broke unexpectedly, we needed it fixed fast to keep things running smoothly. The team showed up quickly and handled everything with skill and efficiency. They got the door repaired in no time, and it looks and works perfectly again. Their professionalism and quick response really saved the day for us. Highly recommend their service – reliable, friendly, and got the job done right!

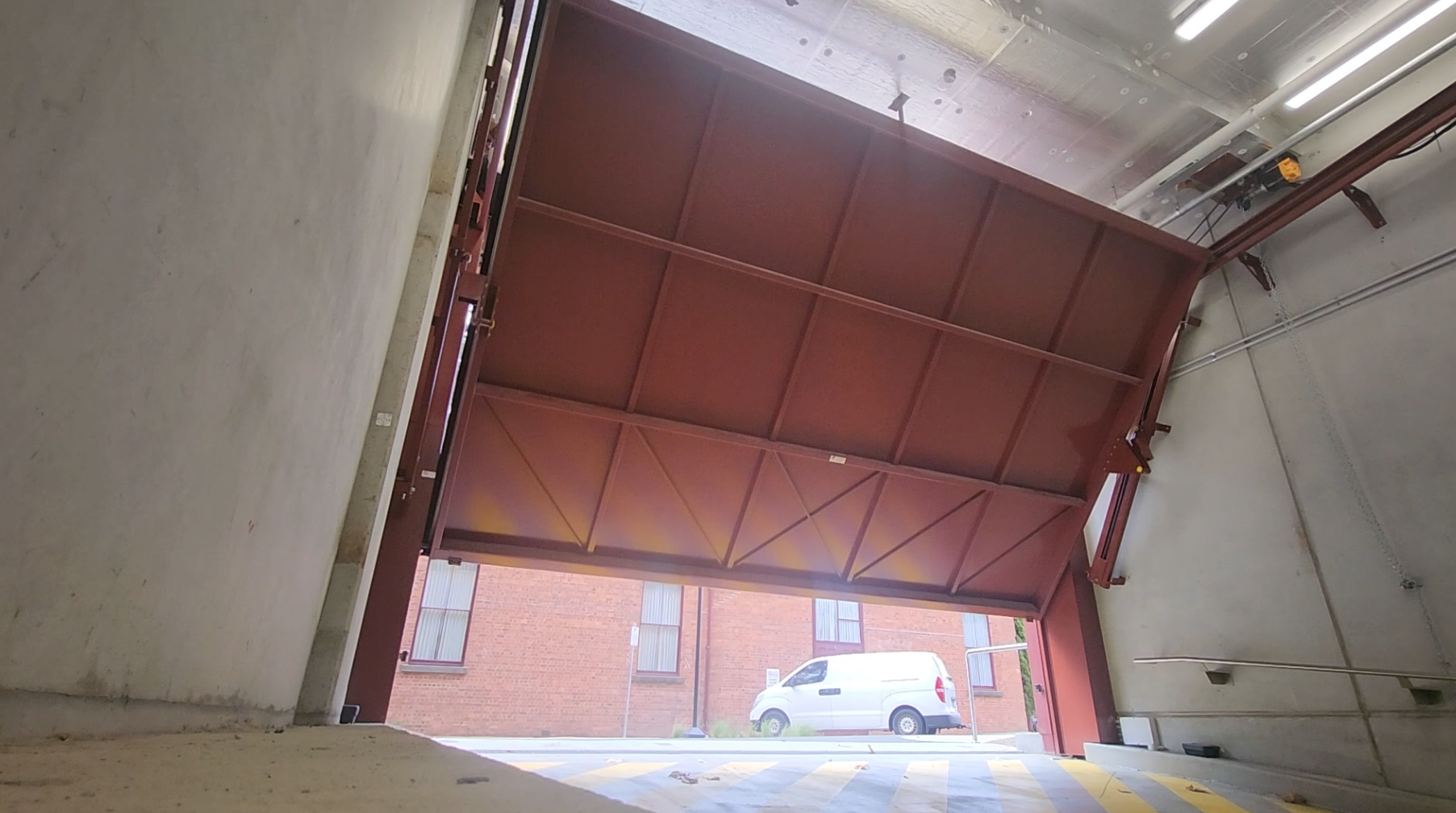

The team has been fantastic to work with across our Bendigo Law Courts and Colac sites. Their work on gates, roller shutters, and counterweight doors has been exceptional, meeting all our operational and security requirements with precision and professionalism. They’ve been responsive, reliable, and easy to work with throughout the process. Their commitment to future servicing across all our sites gives us confidence that our facilities are in safe hands. A dedicated and efficient team we can truly rely on.
