SERIES 1 & 2 ALUMINIUM ROLLER SHUTTERS
Overview
Crafted from high quality extruded aluminium, the Series 1 & 2 Roller Shutters provide exceptional security while enhancing the aesthetic appeal of any establishment. Designed for versatility, these shutters can be customised to suit a wide range of aperture sizes and design requirements.
Each shutter is equipped with a motorised locking mechanism for convenience and security. For additional protection, an optional two-point locking system can be installed, which can be keyed from either the inside or outside.

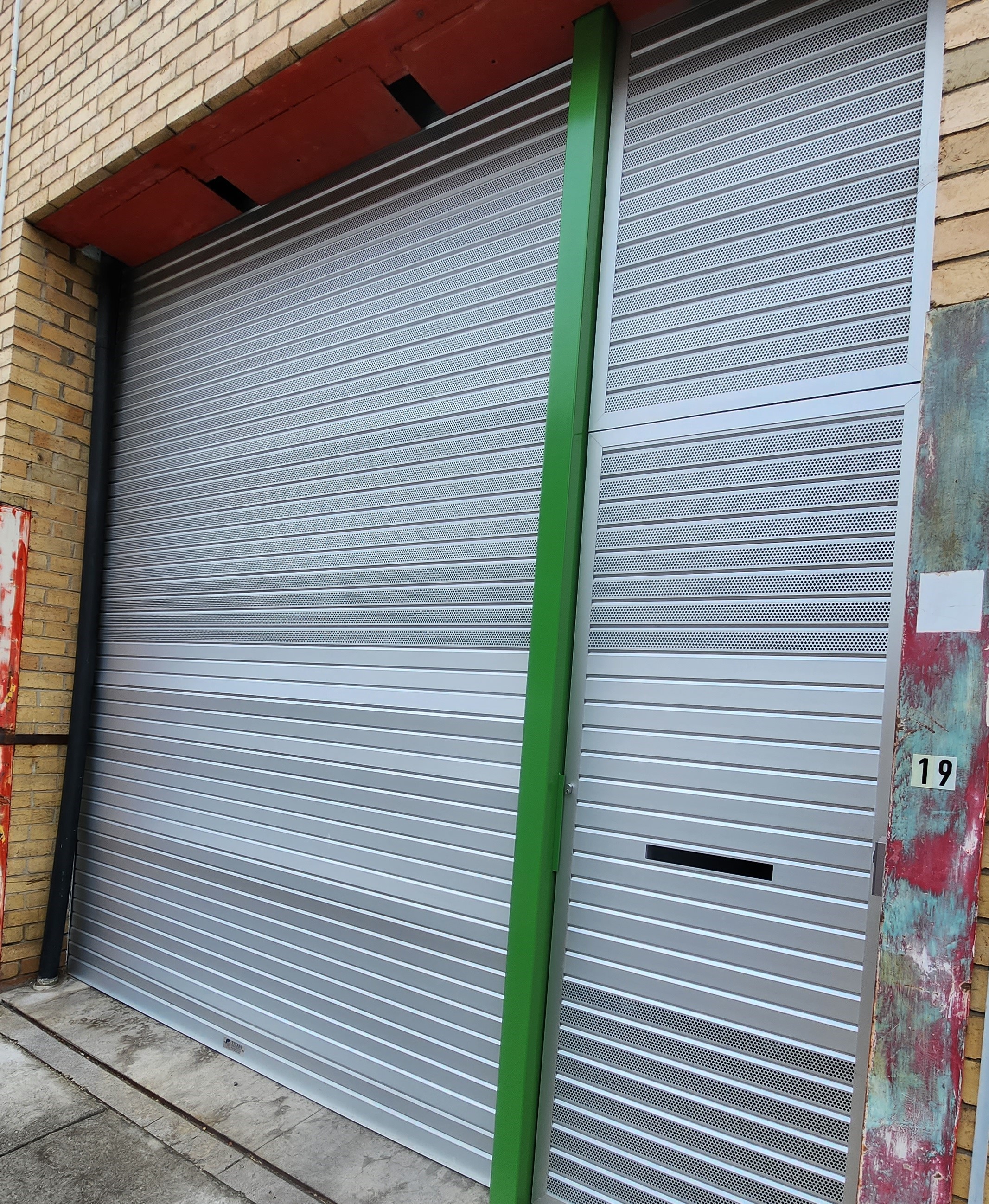

Available in both anodised and powder coated finishes, these shutters can be tailored to match your interior or exterior colour schemes. Optional perforated panels are available for increased airflow, while clear acrylic panels can be installed behind perforations to protect against dust and debris.
Applications

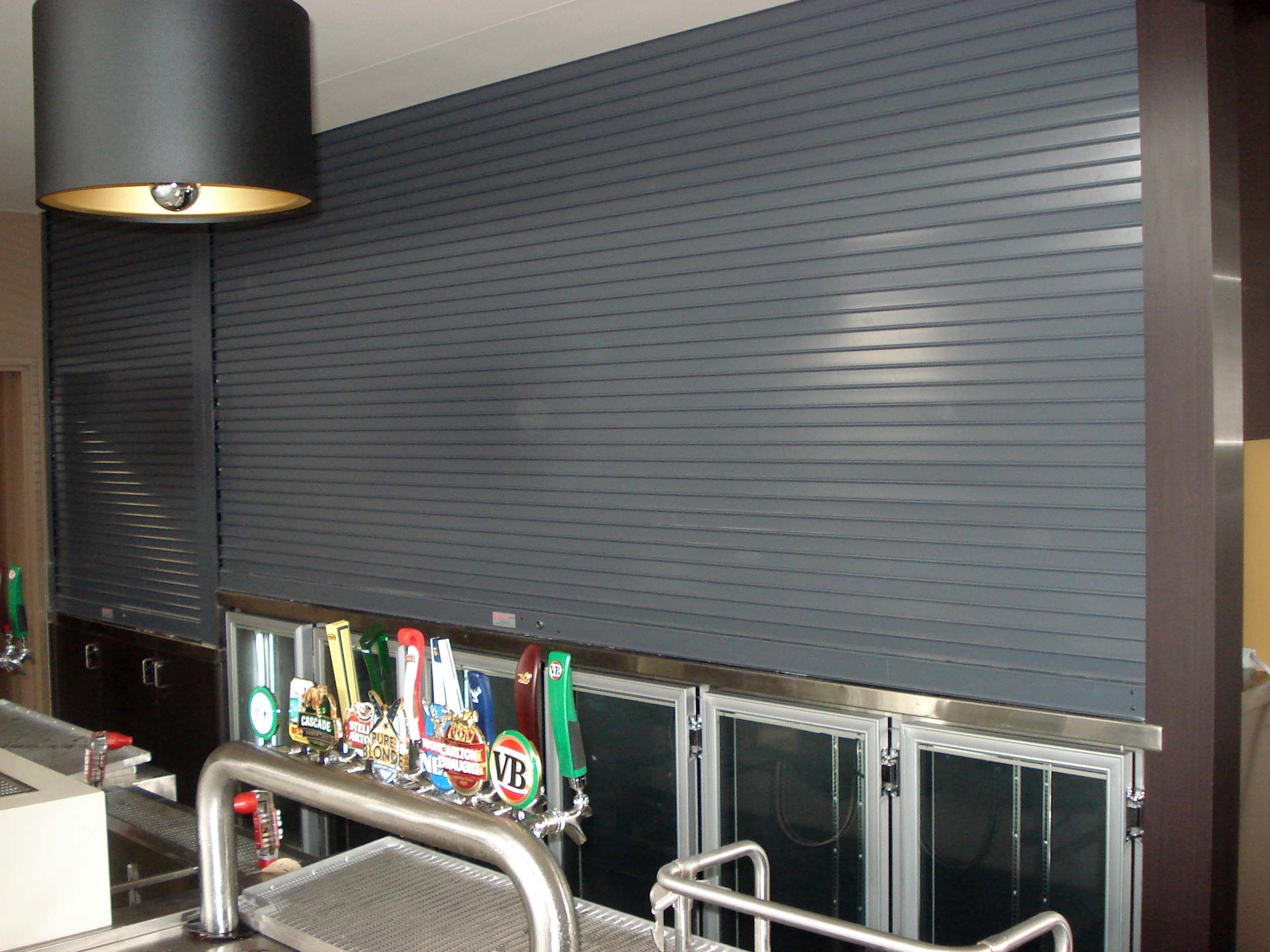

Suitable for many commercial applications including: Shopping Centre, Bar Tops, Counter Tops, Shopfronts, Doorways, Bottle Shops, Sports Complexes, Arcades, Clubs, Carparks, Ventilation, Security, Delivery Docks
Size
Available in sizes up to 6,000mm (W) x 6,000mm (H). Custom sizing available upon request.
Specifications
Curtains:

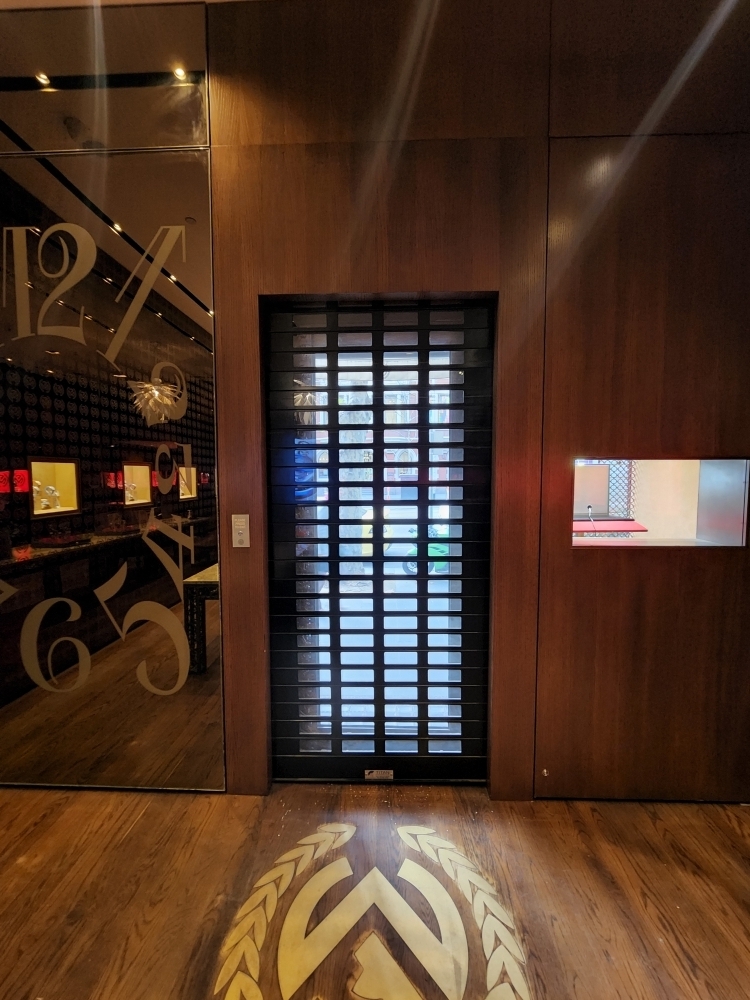

Series 1 is constructed from extruded aluminium slats with a face depth of 60mm x 1.5mm thick. Optional slotting of 100mm x 25mm.

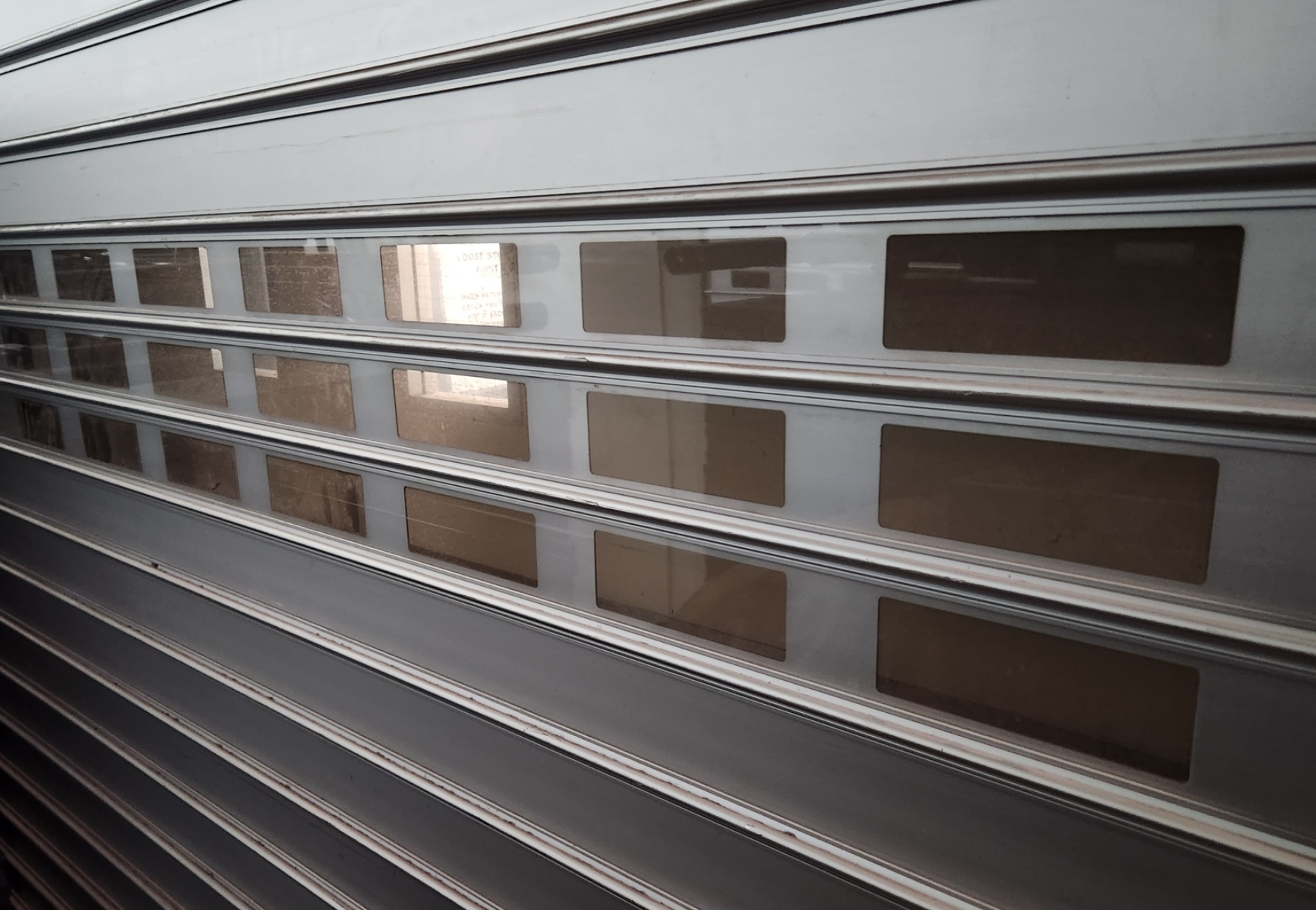

Series 2 is as the above details with a face depth of 75mm x 1.5mm. Nylon end clips shall be fitted to alternate slats to prevent lateral movement and provide smooth operation, free from lubrication. Operational Slotting 225mm x 42mm available for any number of slats. Vision panels of clear acrylic can be fitted to the slotted slats providing a dust seal.
Operation:
All doors are counterbalanced per manual operation and motorisation is optional.
24V Belt-Driven System
Motorised systems utilise low-voltage 24V belt-driven technology to deliver smooth, quiet operation. The 24V system may be configured with a single motor or dual motors, allowing the door to remain evenly balanced across the opening.
240V Chain-Driven System:
Motorised operation utilising a 240V chain-driven system, designed for larger and heavier door applications, including wide-span openings.
3-Phase Motor Option:
For large-scale applications, including doors exceeding 20 metres in width, a 3-phase motor configuration is available.
Slide Guide
50mm x 33mm extruded aluminium with false back for concealed fixing. Optional Nylofelt Buffer available.
Locking:
Centrally mounted, two way Mortice Key Lock or Sliding Shoot Bolt locking, mounted within the bottom rail. Optional waist high locking is also available.
Bottom Rail:
90mm x 48mm extruded aluminium section incorporating locking device and concealed locking rods and optional PVC buffer.
Brackets:
90mm x 40mm mild steel.
Roller drum:
229mm spiral ducted tube attached to ball bearing drum wheels rotating on a 34mm steel shaft. The shaft shall be fitted with helical springs designed to counterbalance the curtain weight throughout its operation. The drum shall be designed to give minimum deflection over the span.
Mullions:
Specially designed one piece extrusion for straight openings and two pieces sections that can be set to any angle and shall be used for wide openings and multiple door installations. Mullions shall be lift out type with shoot bolts to base.
Special wide mullions fabricated from aluminium sheet shall be used when two doors meet at an acute angle and no headroom exists for different mounting heights of doors (stacking).
